Battery material vacuum drying machine Vacuum rake dryer

Battery material vacuum drying machine Vacuum rake dryer

$3000-80000 /Set/Sets

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land,Air
Port:	Shanghai,Nanjing,Ningbo

Option:

Contact Now

Product Description

Product Attributes

Model No.: ZPG

Brand: Lead machinery

Species: Vacuum Drying Equipment

Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Old And New: New

Place Of Origin: China

Core Selling Point: Energy Saving

Warranty Period: 1 Year

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry: Food &Amp; Beverage Factory, Energy &Amp; Mining, Other

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Egypt, Viet Nam, Russia, South Korea, South Africa

Showroom Location (in Which Countries Are There Sample Rooms Overseas): Egypt, Russia, Viet Nam, Algeria, Nigeria

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Core Components: Pump, Gearbox

Heat Source: Steam Heating

Material: Sus304, Sus304l, Sus316, Sus316l, Ti

Input Material: Paste, cream, powder, slurry

Heating Source: Steam, hot water, thermal oil

Material: SUS304/ SUS316L/ Q235/ Ti

Working Type: Batch type

Design Pressure In Jacket: ≤0.3Mpa

Pressure In Chamber: -0.09~0.096Mpa

Explosion-proof: Customized

Organic Solvent Recovery: Customized

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	Wooden case or nude packing
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Description of Vacuum Rake Dryer:

ZPG Series battery material Vacuum Drying Machine is specially designed for the Battery Material adopts the vacuum technology to dry the material. In the Vacuum state, the water ' s boiling point depression which will be helpful to water evaporation and protect the material quality.
For specialized design, client can choose steam / hot water / thermal oil as heating media; During drying process, the drying chamber ' s maintain a certain vacuum degree.
After filtered, the moisture will be vented to outside.
Meanwhile, the shaft and paddle can be heated at the same time if customer needed it.
In the drying chamber, the harrow is the main part.
Based on detailed calculation and rich experience, Lead machinery gets the most reasonable quantity and distribution of the harrow teeth.
Through the shaft drive, the design for the paddle end and axial is with the certain angle. by the positive - reverse rotation of the main shaft, the material can fellow along the axial movement to dry and discharge the material

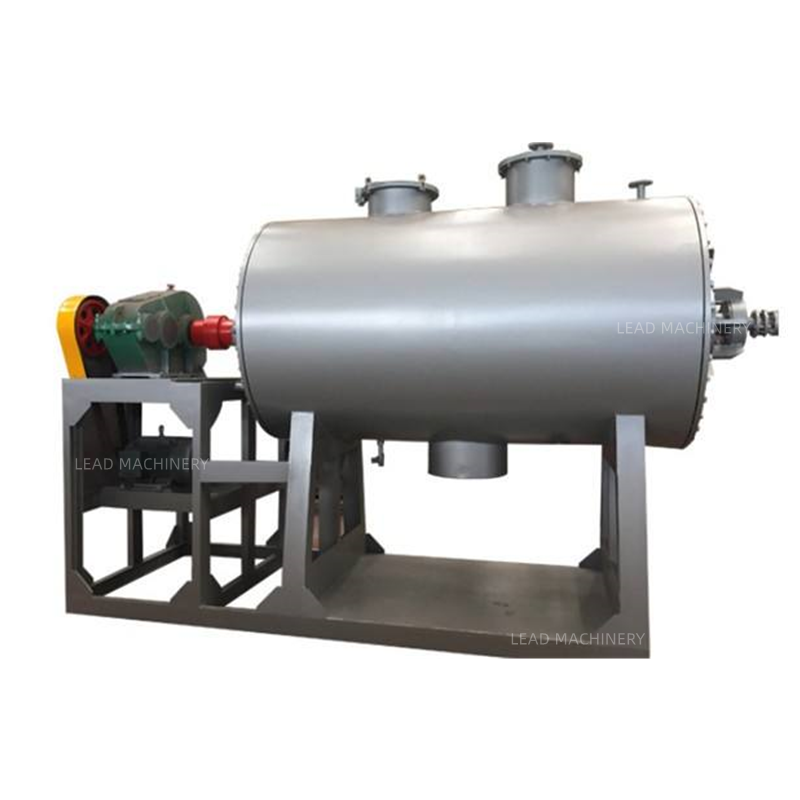

Vacuum Rake Dryer

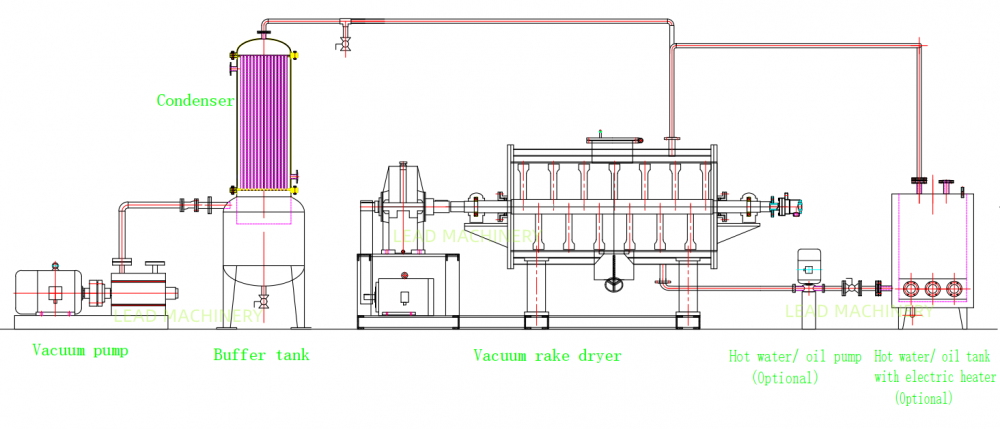

Note:

1. In the flow chart, the heating source is hot water or thermal oil. The heating source also can be steam.

2. In the flow chart, the machine includes organic solvent recovery system, and it is explosion-proof type. If the solvent in the material is water, the condenser and explosion-proof are not needed.

Features of Vacuum rake dryer:
The material to be dried is added from the top and middle of the shell. Under the stirring of the continuous forward and reverse rotating rake teeth, the material moves back and forth in the axial direction, and the surface in contact with the inner wall of the shell is constantly updated. Stirring and pulverizing the pulverizing rod make the moisture on the surface of the material more favorable to discharge, and the vaporized moisture is emptied from the outlet of the vacuum pump through the dry dust collector, the wet dust collector and the condenser. Applicable materials for rake dryer: materials below 100 mesh, pigments, mud head-like materials, soda ash detergent, soda lime starch, dyes and pigments, clay ash, etc.
The interlayer and inner stirring are used for heating at the same time, with large heat transfer surface and high thermal efficiency. Especially suitable for drying heat-sensitive materials. The dried materials are in slurry, paste, granular, powder or fibrous form, and are widely used in the production process of solid alcohol sodium. Set up stirring to make the material form a continuous circulation state in the barrel, which further improves the uniformity of the heating of the material.

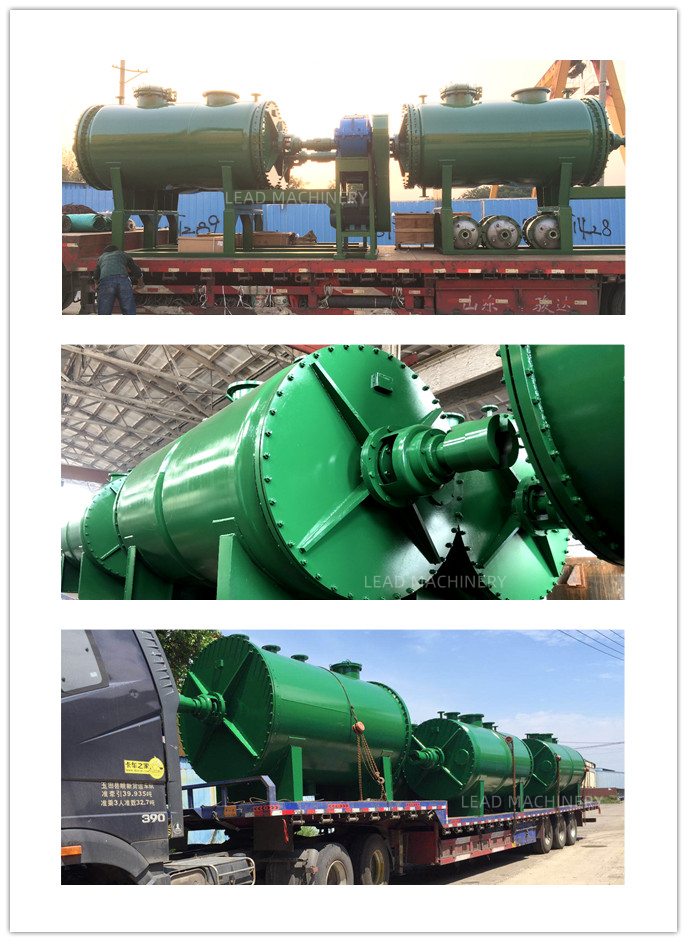

vacuum rake dryer

Parameters of vacuum rake dryer:

Model	ZPG-500	ZPG-750	ZPG-1000	ZPG-1500	ZPG-2000	ZPG-3000	ZPG-5000
Total volume (L)	500	750	1000	1500	2000	3000	5000
Loading volume (L)	300	450	600	900	1200	1800	3000
Power of motor (kW)	4	5.5	5.5	7.5	11	15	22
Stirring speed (rpm)	5~25	5~25	5~12	5~12	5~12	5~12	5~25
Design pressure in the jacket (Mpa)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3
Pressure in the drum (Mpa)	-0.09~0.096	-0.09~0.096	-0.09~0.096	-0.09~0.096	-0.09~0.096	-0.09~0.096	-0.09~0.096
